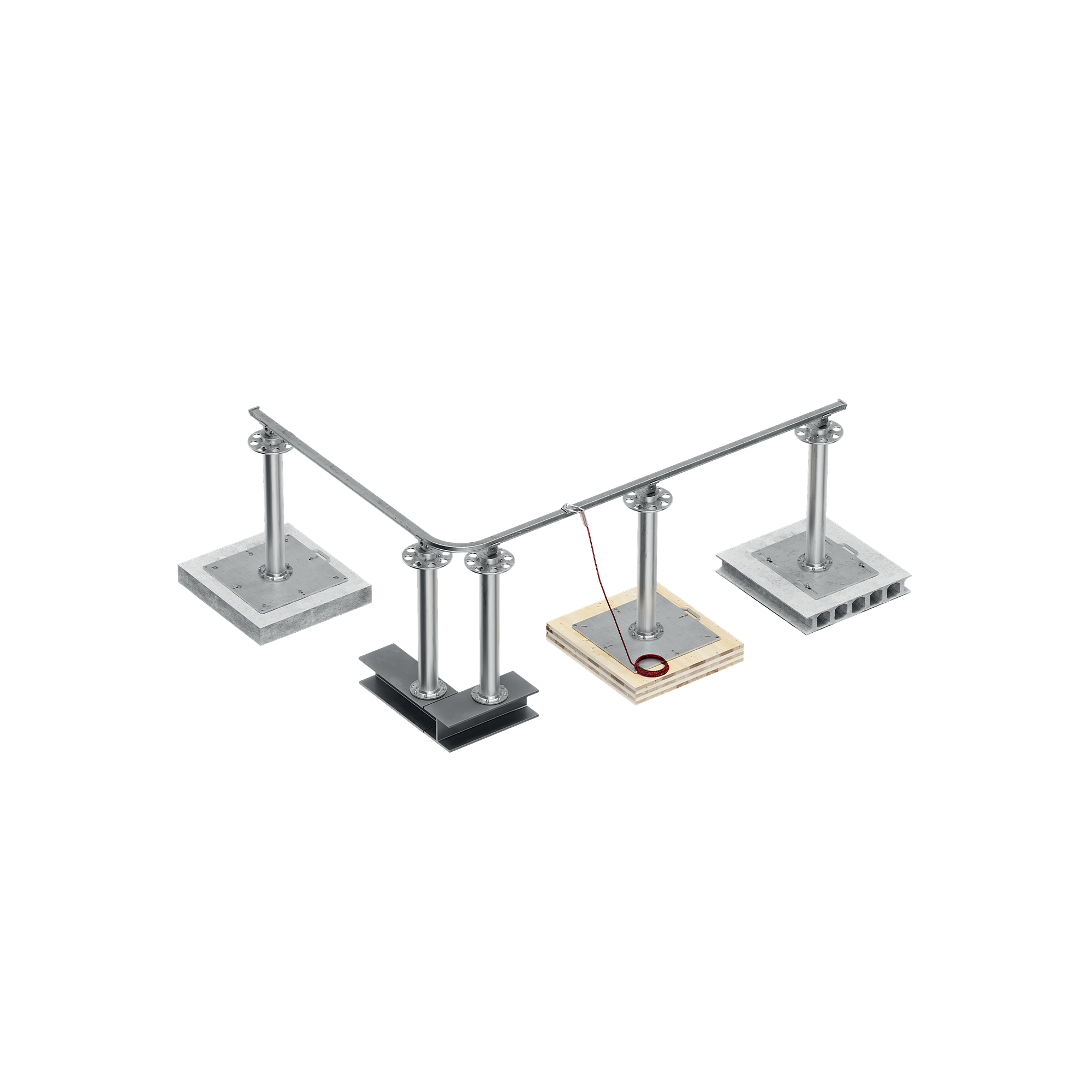

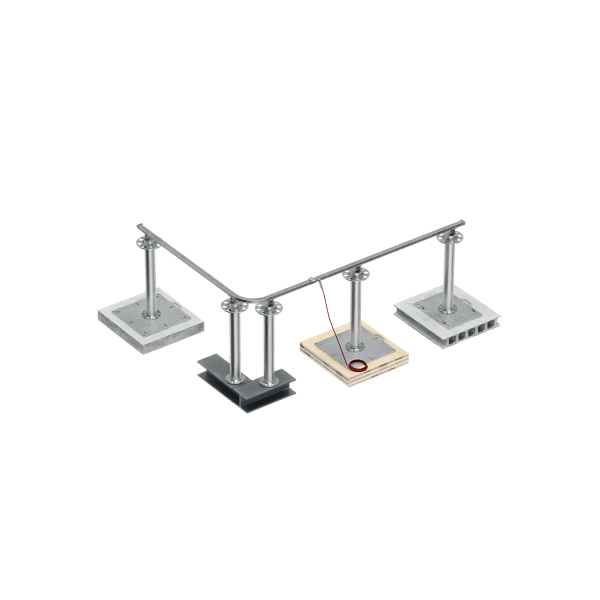

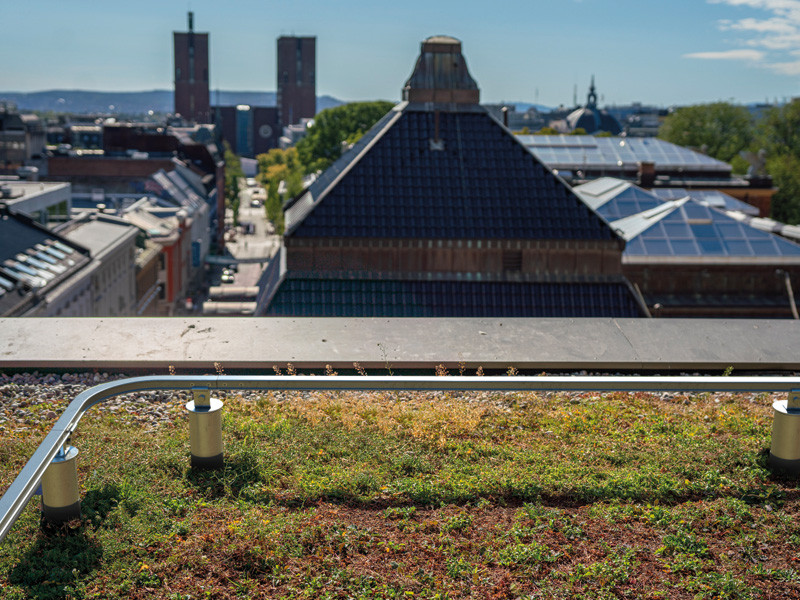

SCHIENENSYSTEM AUF STARRER STÜTZE, KONZIPIERT FÜR SEILZUGANGSTECHNIK
H-RAIL + SOLID
Coming Soon

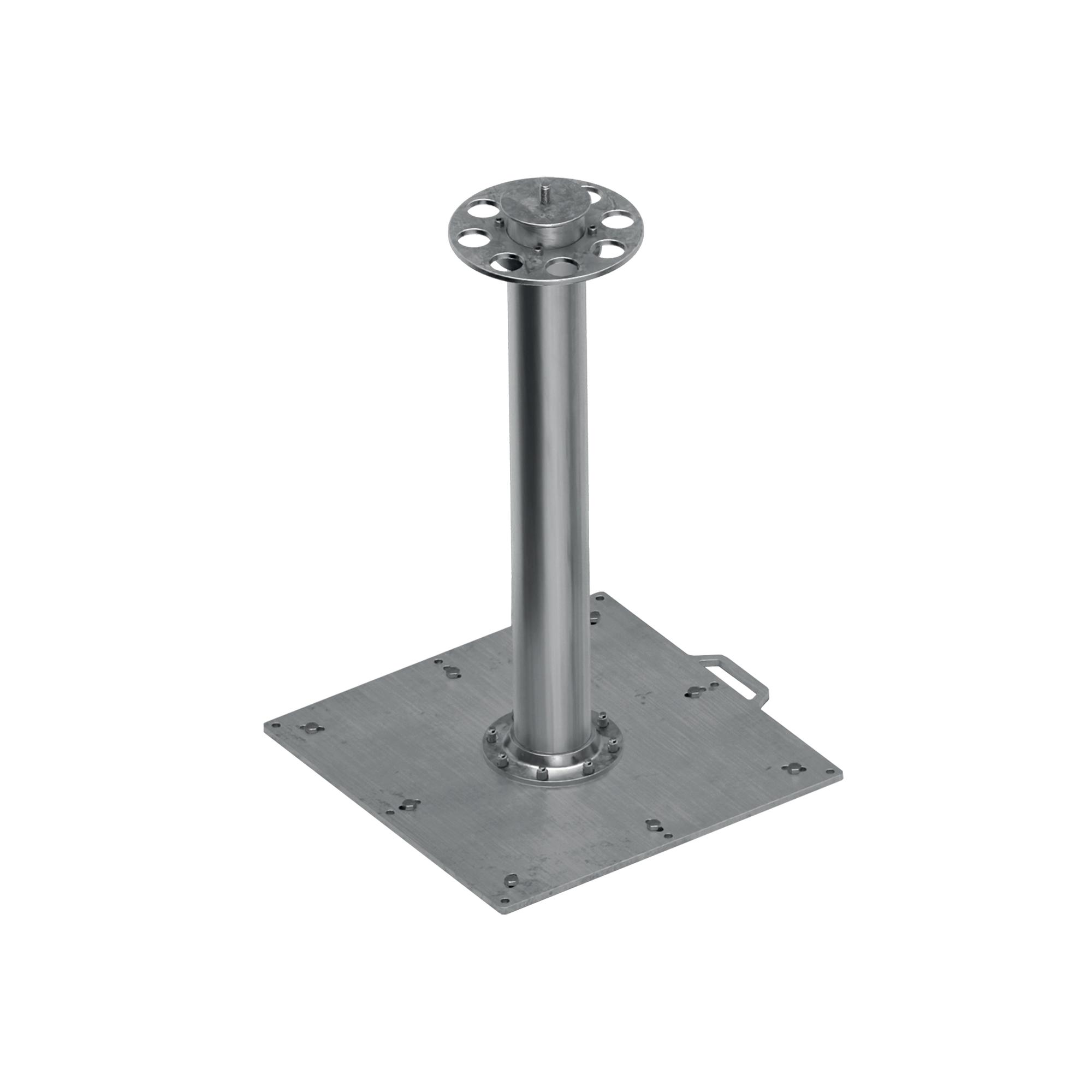

Die Stütze zeichnet sich durch ihre hohe Steifigkeit und Festigkeit aus und sorgt in Kombination mit der Riggingplatte für ein sicheres und bequemes Arbeiten am hängenden Seil.
Die Stütze besteht aus Aluminiumlegierung und lässt sich aufgrund ihres geringen Gewichts leicht handhaben und montieren.
Verfügbar in Höhen von 400 bis 1000 mm, kann an verschiedene Dachaufbauten angepasst werden
Technische Dokumentation
Technisches Datenblatt
|
|---|
SOLID
| ART.-NR. | Material | B
[mm]
|
H
[mm]
|
L
[mm]
|
Stk. | |
|---|---|---|---|---|---|---|
| SOLID400 | New | EN AW-6082-T6 | 220.5 | 400 | - | 1 |
| SOLID600 | New | EN AW-6082-T6 | 220.5 | 600 | - | 1 |
| SOLID800 | New | EN AW-6082-T6 | 220.5 | 800 | - | 1 |
| SOLID1000 | New | EN AW-6082-T6 | 220.5 | 1000 | - | 1 |
| SOLIDRIG | New | EN AW-6082-T6 | - | - | - | 1 |
| SOLIDPLATE | New | EN AW-6082-T6 | 550 | - | 595 | 1 |
| SOLIDPLATEHC | New | EN AW-6082-T6 | 650 | - | 545 | 1 |
| SOLIDPLATEHD | New | EN AW-6082-T6 | 650 | - | 695 | 1 |
SCHIENE
| ART.-NR. | Beschreibung | Material | B
[mm]
|
H
[mm]
|
L
[mm]
|
Stk. |
|---|---|---|---|---|---|---|
| RAIL3000 | 3m aluminium rail | EN AW 6063 (T6) | 49 | 41 | 3000 | 1 |
| RAILC90 | 90° curved rail | EN AW 6063 (T6) | 475 | 41 | 475 | 1 |
| RAILC120 | 120° curved rail | EN AW 6063 (T6) | 336 | 41 | 538 | 1 |
| RAILC135 | 135° curved rail | EN AW 6063 (T6) | 257 | 41 | 536 | 1 |
| RAILC150 | 150° curved rail | EN AW 6063 (T6) | 178 | 41 | 512 | 1 |
HALTERUNG
| ART.-NR. | Beschreibung | Stk. |
|---|---|---|
| RAILBRAT | rail bracket | 1 |
| RAILBRAT12 | rail bracket | 1 |
| RAILBRATW | rail bracket | 1 |
| RAILBRAS | rail bracket | 1 |
| RAILBRAW | rail bracket | 1 |
ENDBEFESTIGUNG
| ART.-NR. | Beschreibung | Material | B
[mm]
|
H
[mm]
|
L
[mm]
|
Stk. | |
|---|---|---|---|---|---|---|---|
| RAILEND | rail terminal element | AISI 304 stainless steel grade 1.4301 | 84.5 | 48.6 | 55 | 1 | |
| RAILENDA4 | New | rail terminal element | AISI 316 stainless steel grade 1.4401 | - | 48.6 | 55 | 1 |
| RAILENDOPEN | rail terminal element | AISI 304 stainless steel grade 1.4301 | 49 | 49 | 60 | 1 | |
| RAILENDOPENA4 | New | rail terminal element | AISI 316 stainless steel grade 1.4401 | - | 49 | 60 | 1 |
VERBINDUNG
| ART.-NR. | Beschreibung | Material | B
[mm]
|
H
[mm]
|
L
[mm]
|
Stk. |
|---|---|---|---|---|---|---|
| RAILJUN | rail junction element | EN AW 6082 | 28.7 | 32.7 | 340 | 1 |
BEWEGLICHER SEILGLEITER
| ART.-NR. | Beschreibung | Material | B
[mm]
|
H
[mm]
|
L
[mm]
|
Stk. | |
|---|---|---|---|---|---|---|---|
| RAILSLIDE | sliding device | AISI 304 stainless steel grade 1.4301 | 50 | 51 | 70 | 1 | |
| RAILSLIDEA4 | New | sliding device | AISI 316 stainless steel grade 1.4401 | 50 | 51 | 70 | 1 |
| RAILSLIDEOH | sliding device | AISI 304 stainless steel grade 1.4301 | 72 | 72 | 95 | 1 | |
| RAILSLIDEOHA4 | New | sliding device | AISI 316 stainless steel grade 1.4401 | 72 | 72 | 95 | 1 |
TOOL
| ART.-NR. | Beschreibung | Material | B
[mm]
|
H
[mm]
|
L
[mm]
|
Stk. |
|---|---|---|---|---|---|---|
| RAILJUNTOOL | rail tool | EN AW 6082 - 1.1191 (C45E) aluminium | 92 | 116 | 132 | 1 |
| RAILPLATE | rail id plate | - | - | 40 | 140 | 1 |
BEFESTIGUNG
| ART.-NR. | Beschreibung | Material | Stk. | |
|---|---|---|---|---|
| RAILOCKSCREW | lock screw | A2-70 | 250 | |
| RAILSCREW | DIN 7991 A2-70 | A2-70 | 50 | |
| RAILSCREWA4 | New | DIN 7991 A4-70 | A4-70 | 50 |
TARGAHORxy
| ART.-NR. | Beschreibung | Stk. |
|---|---|---|
| TARGAHORIT | Label plate for PATROL and H-RAIL systems IT | 1 |
| TARGAHORDE | Label plate for PATROL and H-RAIL systems DE | 1 |
| TARGAHOREN | Label plate for PATROL and H-RAIL systems EN | 1 |
| TARGAHORES | Label plate for PATROL and H-RAIL systems ES | 1 |
| TARGAHORFR | Label plate for PATROL and H-RAIL systems FR | 1 |
| TARGAHORPT | Label plate for PATROL and H-RAIL systems PT | 1 |
| TARGAHORRU | Label plate for PATROL and H-RAIL systems RU | 1 |
| TARGAHORCS | Label plate for PATROL and H-RAIL systems CS | 1 |
| TARGAHORDA | Label plate for PATROL and H-RAIL systems DA | 1 |
| TARGAHOREL | Label plate for PATROL and H-RAIL systems EL | 1 |
| TARGAHORET | Label plate for PATROL and H-RAIL systems ET | 1 |
| TARGAHORFI | Label plate for PATROL and H-RAIL systems FI | 1 |
| TARGAHORHR | Label plate for PATROL and H-RAIL systems HR | 1 |
| TARGAHORHU | Label plate for PATROL and H-RAIL systems HU | 1 |
| TARGAHORIS | Label plate for PATROL and H-RAIL systems IS | 1 |
| TARGAHORJA | Label plate for PATROL and H-RAIL systems JA | 1 |
| TARGAHORLT | Label plate for PATROL and H-RAIL systems LT | 1 |
| TARGAHORLV | Label plate for PATROL and H-RAIL systems LV | 1 |
| TARGAHORNL | Label plate for PATROL and H-RAIL systems NL | 1 |
| TARGAHORNO | Label plate for PATROL and H-RAIL systems NO | 1 |
| TARGAHORPL | Label plate for PATROL and H-RAIL systems PL | 1 |
| TARGAHORRO | Label plate for PATROL and H-RAIL systems RO | 1 |
| TARGAHORSK | Label plate for PATROL and H-RAIL systems SK | 1 |
| TARGAHORSL | Label plate for PATROL and H-RAIL systems SL | 1 |
| TARGAHORSV | Label plate for PATROL and H-RAIL systems SV | 1 |
| TARGAHORTR | Label plate for PATROL and H-RAIL systems TR | 1 |
| TARGAHORZH | Label plate for PATROL and H-RAIL systems ZH | 1 |
| TARGAHORAR | Label plate for PATROL and H-RAIL systems AR | 1 |
Zusammengesetzt aus
