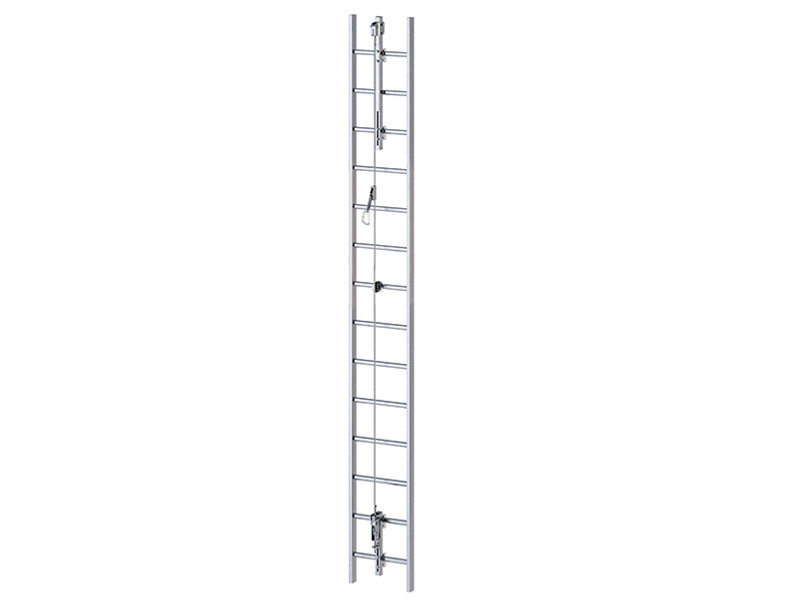

VERTIKALES SEILSYSTEM MIT ELEMENTEN AUS EDELSTAHL A4
VERTIGRIP A4
Das vertikale Seilsystem VERTIGRIP A4 garantiert dank der Elemente aus Edelstahl AISI 316 hervorragende Korrosionsbeständigkeit in Industrieumgebungen und Meeresnähe. Dazu gehört ein Seilgleiter mit integriertem Bandfalldämpfer für den sicheren und kontrollierten Aufstieg und Abstieg.
Vertikales Seilsystem mit Edelstahlelementen VERTIGRIP A4: Sicherheit und Korrosionsbeständigkeit.

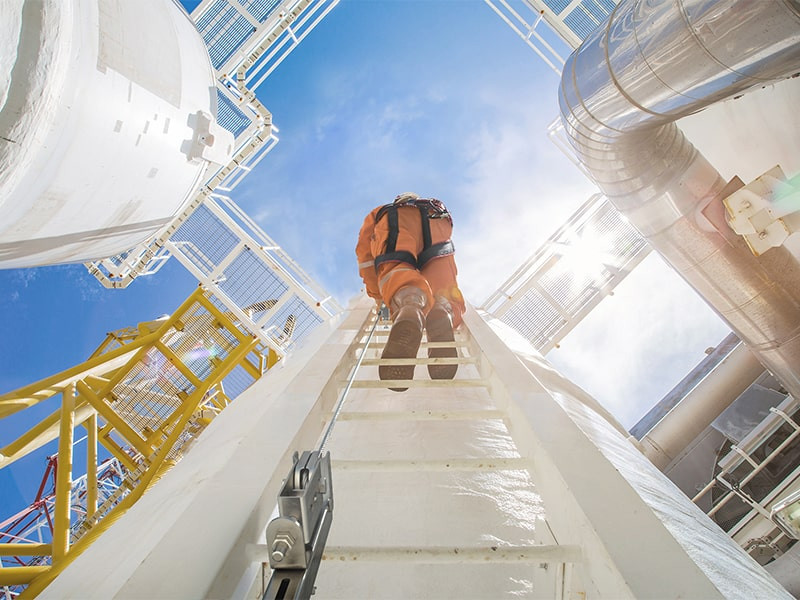

Das vertikale Seilsystem VERTIGRIP A4 kann an Holz-, Stahl- oder Betonwänden mit einem Neigungswinkel bis zu 15° zur Vertikalen oder direkt an einer Leiter installiert werden.
Technische Dokumentation
Technisches Datenblatt
|
|
|---|---|
Zertifikate
|
|
Konformitätserklärung
|
|
Sicherheitshinweise, gebrauchs- und montageanleitung VERTIGRIP
|
|
Sicherheitshinweise, gebrauchs- und montageanleitung VERTSLIDE
|
|
Erklärung zur Montage und Überprüfung
|
Verlegeanleitung
| Installationsanleitung |
|---|
COMPONENTI PRINCIPALI PER LINEA VITA VERTICALE
| ART.-NR. | Beschreibung | Material | peso netto
[Kg]
|
Stk. | |
|---|---|---|---|---|---|
| VERTSPEARA4 | set for A4 VLL | AISI 316 stainless steel grade 1.4401 | 2.6 | 1 | |
| CABLE | Ø8 7 x 7 | stainless steel - AISI316 | 0.26 | 1 | |
| VERTSLIDE | removable guided type fall arrester with energy absorber for vertical lifeline | AISI 304 stainless steel grade 1.4301 EN AW 7075 T6 Aluminium | 0.4 | 1 | |
| VERTSLIDEPAS | removable sliding through fall arrest device with energy absorber for vertical lifeline | AISI 304 stainless steel grade 1.4301 | 0.1 | 1 | |
| VERTOP09A4 | upper anchor system (0,9 m) for vertical lifeline on A4 ladder | AISI 316 stainless steel grade 1.4401 | 4.5 | 1 | |
| VERTOP17A4 | upper anchor system (1,7 m) for vertical lifeline on A4 ladder | AISI 316 stainless steel grade 1.4401 | 9.46 | 1 | |
| VERTBASEA4 | lower anchor system for vertical lifeline on A4 ladder | AISI 304 stainless steel grade 1.4301 | 1.85 | 1 | |
| VERTINTA4 | intermediate anchor system for vertical lifeline on A4 ladder | AISI 316 stainless steel grade 1.4401 – ABS | 2 | 1 | |
| VERTINTPAS1A4 | New | fixed pass-through intermediate element for vertical A4 lifeline | AISI 316 stainless steel grade 1.4401 | - | - |
| VERTINTPAS2A4 | New | removable pass-through intermediate element for vertical A4 lifeline | AISI 316 stainless steel grade 1.4401 | - | - |
SUPPORTI PER LINEA VITA VERTICALE SU STRUTTURA
| ART.-NR. | Beschreibung | Material | peso netto
[Kg]
|
Stk. |
|---|---|---|---|---|
| VERTOPWA4 | upper anchor system for vertical lifeline on A4 structure | AISI 316 stainless steel grade 1.4401 | 2 | 1 |
| VERTBASEWA4 | lower anchor system for vertical lifeline on A4 structure | AISI 316 stainless steel grade 1.4401 | 1 | 1 |
| VERTINTWA4 | intermediate anchor system for vertical lifeline on A4 structure | AISI 316 stainless steel grade 1.4401 – ABS | 1 | 1 |
ZUBEHÖR VERTIKALES SEILSYSTEM
| ART.-NR. | Beschreibung | Material | peso netto
[Kg]
|
Stk. |
|---|---|---|---|---|
| VERTHAND | set of handles for VERTOP17 | PA6 - stainless steel 1.4301 / AISI 304 | 0.05 | 1 |
| VERTSUP1 | additional reinforcement set for ladder | AISI 304 stainless steel grade 1.4301 | 0.5 | 1 |
TARGAVERTxy
| ART.-NR. | Beschreibung | Stk. |
|---|---|---|
| TARGAVERTIT | Label plate for VERTIGRIP systems IT | 1 |
| TARGAVERTDE | Label plate for VERTIGRIP systems DE | 1 |
| TARGAVERTEN | Label plate for VERTIGRIP systems EN | 1 |
| TARGAVERTES | Label plate for VERTIGRIP systems ES | 1 |
| TARGAVERTFR | Label plate for VERTIGRIP systems FR | 1 |
| TARGAVERTPT | Label plate for VERTIGRIP systems PT | 1 |
| TARGAVERTRU | Label plate for VERTIGRIP systems RU | 1 |
| TARGAVERTCS | Label plate for VERTIGRIP systems CS | 1 |
| TARGAVERTDA | Label plate for VERTIGRIP systems DA | 1 |
| TARGAVERTEL | Label plate for VERTIGRIP systems EL | 1 |
| TARGAVERTET | Label plate for VERTIGRIP systems ET | 1 |
| TARGAVERTFI | Label plate for VERTIGRIP systems FI | 1 |
| TARGAVERTHR | Label plate for VERTIGRIP systems HR | 1 |
| TARGAVERTHU | Label plate for VERTIGRIP systems HU | 1 |
| TARGAVERTIS | Label plate for VERTIGRIP systems IS | 1 |
| TARGAVERTJA | Label plate for VERTIGRIP systems JA | 1 |
| TARGAVERTLT | Label plate for VERTIGRIP systems LT | 1 |
| TARGAVERTLV | Label plate for VERTIGRIP systems LV | 1 |
| TARGAVERTNL | Label plate for VERTIGRIP systems NL | 1 |
| TARGAVERTNO | Label plate for VERTIGRIP systems NO | 1 |
| TARGAVERTPL | Label plate for VERTIGRIP systems PL | 1 |
| TARGAVERTRO | Label plate for VERTIGRIP systems RO | 1 |
| TARGAVERTSK | Label plate for VERTIGRIP systems SK | 1 |
| TARGAVERTSL | Label plate for VERTIGRIP systems SL | 1 |
| TARGAVERTSV | Label plate for VERTIGRIP systems SV | 1 |
| TARGAVERTTR | Label plate for VERTIGRIP systems TR | 1 |
| TARGAVERTZH | Label plate for VERTIGRIP systems ZH | 1 |
| TARGAVERTAR | Label plate for VERTIGRIP systems AR | 1 |
