VERTIKALES SEILSYSTEM AN WÄNDEN
VERTIGRIP ON WALL
New

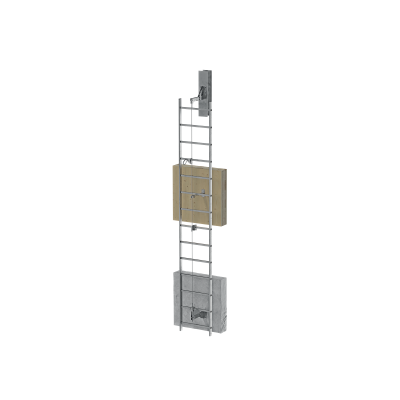

VERTIGRIP ON WALL ist das vertikale Wandseilsystem und eine gute Alternative, wenn das Seilsystem nicht direkt an der Leiter montiert werden kann. Es kann mühelos an Untergründen aus Holz, Stahl und Beton installiert werden.
Wandseilsystem VERTIGRIP ON WALL: Die Alternative zum Seilsystem an der Leiter.
Das vertikale Seilsystem an Wänden VERTIGRIP ON WALL ermöglicht die Einstellung des Seilsystem-Abstands von der Wand. Montierbar an geneigten Fassaden mit einem Winkel von bis zu 15° zur Vertikalen.
Technische Dokumentation
Technisches Datenblatt
|
|
|---|---|
Zertifikate
|
|
Konformitätserklärung
|
|
Sicherheitshinweise, gebrauchs- und montageanleitung VERTIGRIP
|
|
Sicherheitshinweise, gebrauchs- und montageanleitung VERTSLIDE
|
|
Erklärung zur Montage und Überprüfung
|
Verlegeanleitung
| Installationsanleitung |
|---|
HAUPTKOMPONENTEN FÜR VERTIKALES SEILSYSTEM
| ART.-NR. | Beschreibung | Material | peso netto
[Kg]
|
Stk. | |
|---|---|---|---|---|---|
| VERTSPEAR | set for vertical lifeline with clamps and Tensioner | stainless steel 1.4301 / AISI 304 EN AW 6082 aluminium | 1.62 | 1 | |
| CABLE | Ø8 7 x 7 | stainless steel - AISI316 | 0.26 | 1 | |
| VERTSLIDEPAS | removable sliding through fall arrest device with energy absorber for vertical lifeline | AISI 304 stainless steel grade 1.4301 | 0.1 | 1 | |
| VERTSLIDE | removable guided type fall arrester with energy absorber for vertical lifeline | AISI 304 stainless steel grade 1.4301 EN AW 7075 T6 Aluminium | 0.4 | 1 | |
| VERTOP09 | upper anchor system (0,9 m) for vertical lifeline on ladder | AISI 304 stainless steel grade 1.4301 | 4.44 | 1 | |
| VERTOP17 | upper anchor system (1,7 m) for vertical lifeline on ladder | AISI 304 stainless steel grade 1.4301 | 9.46 | 1 | |
| VERTBASE | lower anchor system for vertical lifeline on ladder | AISI 304 stainless steel grade 1.4301 | 1.84 | 1 | |
| VERTINT | intermediate bracket for vertical lifeline on ladder | AISI 304 stainless steel grade 1.4301 – ABS | 0.64 | 1 | |
| VERTINTPAS1 | New | fixed pass-through intermediate for vertical lifeline | AISI 304 stainless steel grade 1.4301 | - | - |
| VERTINTPAS2 | New | removable pass-through intermediate element for vertical lifeline | AISI 304 stainless steel grade 1.4301 | - | - |
HALTERUNGEN FÜR VERTIKALES SEILSYSTEM AN LEITERN
| ART.-NR. | Beschreibung | Material | peso netto
[Kg]
|
Stk. |
|---|---|---|---|---|
| VERTOPW | upper anchor system for vertical lifeline on structure | AISI 304 stainless steel grade 1.4301 | 2 | 1 |
| VERTBASEW | lower anchor system for vertical lifeline on structure | AISI 304 stainless steel grade 1.4301 | 1 | 1 |
| VERTINTW | intermediate bracket for vertical lifeline on structure | AISI 304 stainless steel grade 1.4301 – ABS | 1 | 1 |
ZUBEHÖR VERTIKALES SEILSYSTEM
| ART.-NR. | Beschreibung | Material | peso netto
[Kg]
|
Stk. |
|---|---|---|---|---|
| VERTHAND | set of handles for VERTOP17 | PA6 - stainless steel 1.4301 / AISI 304 | 0.05 | 1 |
| VERTSUP1 | additional reinforcement set for ladder | AISI 304 stainless steel grade 1.4301 | 0.5 | 1 |
TARGAVERTxy
| ART.-NR. | Beschreibung | Stk. |
|---|---|---|
| TARGAVERTIT | Label plate for VERTIGRIP systems IT | 1 |
| TARGAVERTDE | Label plate for VERTIGRIP systems DE | 1 |
| TARGAVERTEN | Label plate for VERTIGRIP systems EN | 1 |
| TARGAVERTES | Label plate for VERTIGRIP systems ES | 1 |
| TARGAVERTFR | Label plate for VERTIGRIP systems FR | 1 |
| TARGAVERTPT | Label plate for VERTIGRIP systems PT | 1 |
| TARGAVERTRU | Label plate for VERTIGRIP systems RU | 1 |
| TARGAVERTCS | Label plate for VERTIGRIP systems CS | 1 |
| TARGAVERTDA | Label plate for VERTIGRIP systems DA | 1 |
| TARGAVERTEL | Label plate for VERTIGRIP systems EL | 1 |
| TARGAVERTET | Label plate for VERTIGRIP systems ET | 1 |
| TARGAVERTFI | Label plate for VERTIGRIP systems FI | 1 |
| TARGAVERTHR | Label plate for VERTIGRIP systems HR | 1 |
| TARGAVERTHU | Label plate for VERTIGRIP systems HU | 1 |
| TARGAVERTIS | Label plate for VERTIGRIP systems IS | 1 |
| TARGAVERTJA | Label plate for VERTIGRIP systems JA | 1 |
| TARGAVERTLT | Label plate for VERTIGRIP systems LT | 1 |
| TARGAVERTLV | Label plate for VERTIGRIP systems LV | 1 |
| TARGAVERTNL | Label plate for VERTIGRIP systems NL | 1 |
| TARGAVERTNO | Label plate for VERTIGRIP systems NO | 1 |
| TARGAVERTPL | Label plate for VERTIGRIP systems PL | 1 |
| TARGAVERTRO | Label plate for VERTIGRIP systems RO | 1 |
| TARGAVERTSK | Label plate for VERTIGRIP systems SK | 1 |
| TARGAVERTSL | Label plate for VERTIGRIP systems SL | 1 |
| TARGAVERTSV | Label plate for VERTIGRIP systems SV | 1 |
| TARGAVERTTR | Label plate for VERTIGRIP systems TR | 1 |
| TARGAVERTZH | Label plate for VERTIGRIP systems ZH | 1 |
| TARGAVERTAR | Label plate for VERTIGRIP systems AR | 1 |
