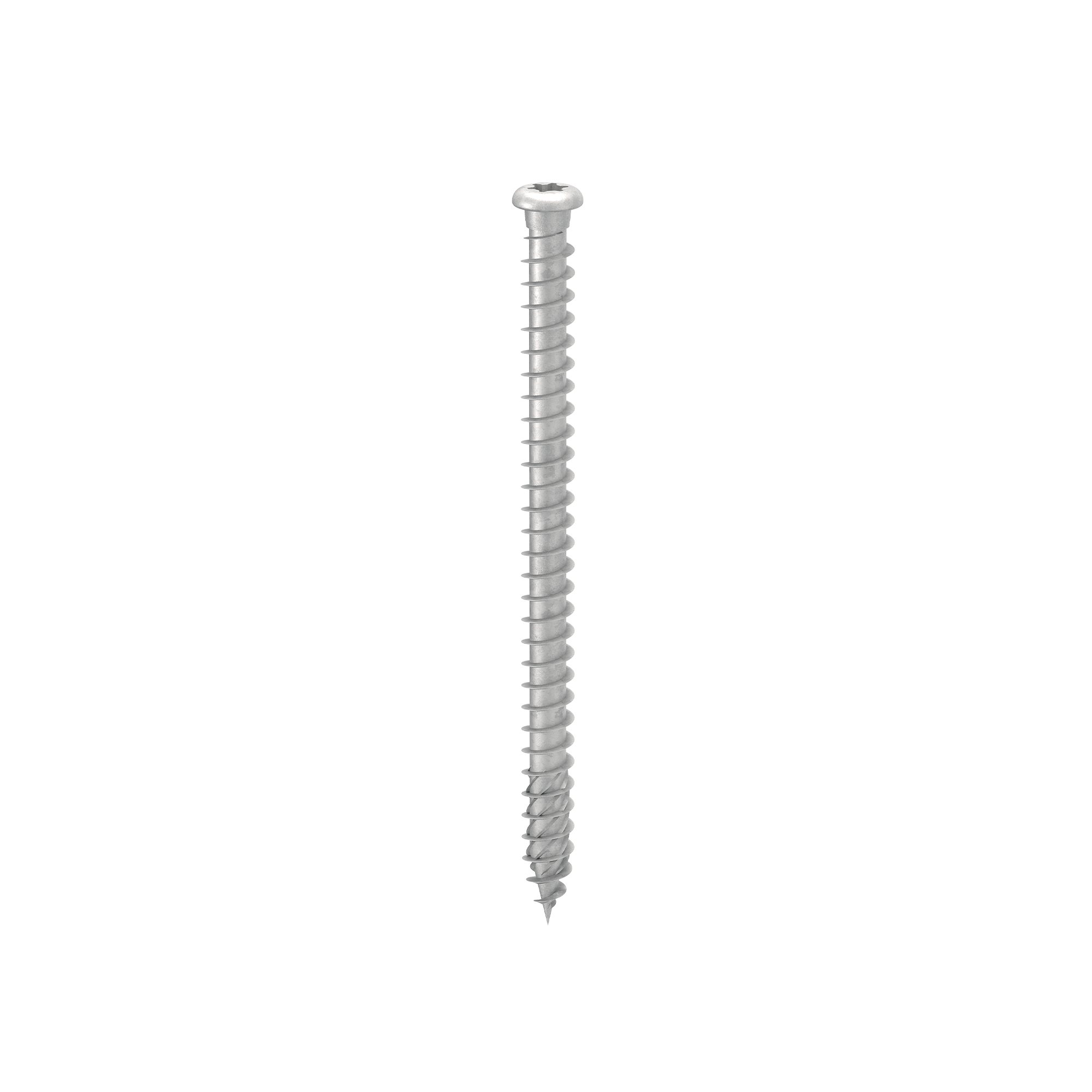

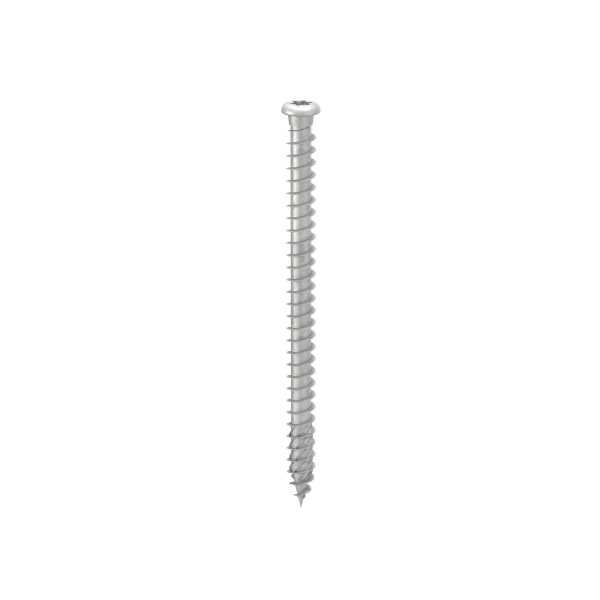

RUNDKOPFSCHRAUBE FÜR LOCHBLECHE AUF HARTHÖLZERN

LBS HARDWOOD EVO

New

The atmospheric corrosion strength class (C4) of the C4 EVO coating was tested by the Research Institutes of Sweden - RISE. Coating suitable for use in applications on wood with an acidity level (pH) greater than 4, such as spruce, larch and pine (see page 314).

Special tip with embossed slit elements. ETA-11/0030 certification allows for use with high density timber without any pre-drill. Approved for structural applications subject to stresses in any direction vs the grain.

The inner core diameter of the screw has been enlarged compared to the LBS version to ensure screwing in higher density woods. The cylindrical under head is designed for fastening mechanical elements and producing an interlocking effect with the plate hole that provides excellent static perfornances

Technische Dokumentation

Technisches Datenblatt
Technisches Datenblatt USA
ETA-Zertifizierung
Leistungserklärung (DOP) Herunterladen
CAD File
BIM.ifc File
BIM.rfa File

LBS HARDWOOD EVO

ART.-NR. info d₁
[mm]
L
[mm]
b
[mm]
d₁
[in]
L
[in]
b
[in]
TX Stk.
LBSHEVO580 - 5 80 76 0.2 3 1/8'' 3'' TX20 200
LBSHEVO5100 - 5 100 96 0.2 4'' 3 3/4'' TX20 200
LBSHEVO5120 - 5 120 116 0.2 4 3/4'' 4 9/16'' TX20 200
LBSHEVO760 - 7 60 55 0.28 2 3/8'' 2 3/16'' TX30 100
LBSHEVO780 - 7 80 75 0.28 3 1/8'' 2 15/16'' TX30 100
LBSHEVO7100 - 7 100 95 0.28 4'' 3 3/4'' TX30 100
LBSHEVO7120 - 7 120 115 0.28 4 3/4'' 4 1/2'' TX30 100
LBSHEVO7160 - 7 160 155 0.28 6 1/4'' 6 1/8'' TX30 100
LBSHEVO7200 - 7 200 195 0.28 8'' 7 11/16'' TX30 100
