RUNDKOPFSCHRAUBE FÜR LOCHBLECHE AUF HARTHÖLZERN

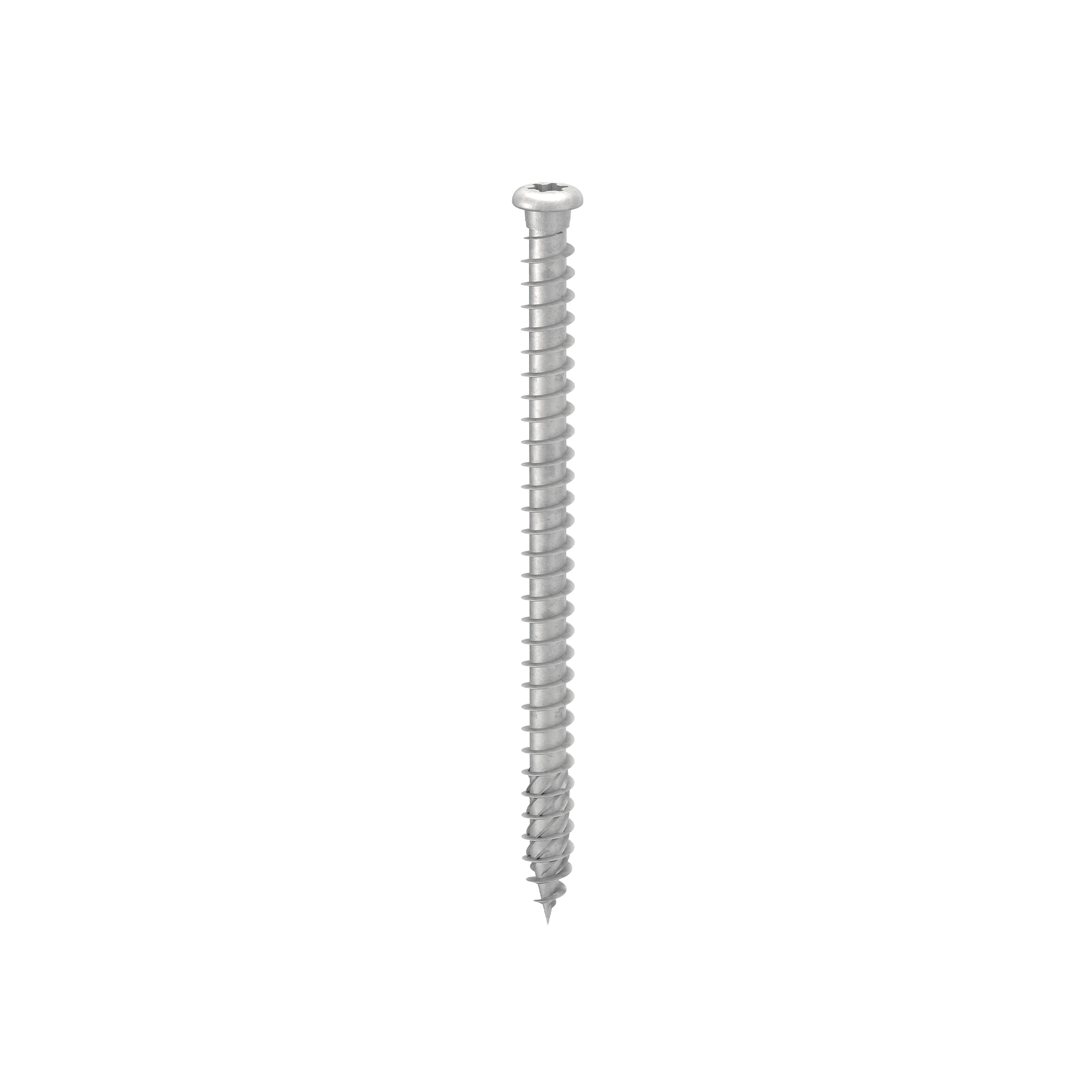

LBS HARDWOOD EVO
The atmospheric corrosion strength class (C4) of the C4 EVO coating was tested by the Research Institutes of Sweden - RISE. Coating suitable for use in applications on wood with an acidity level (pH) greater than 4, such as spruce, larch and pine (see page 314).
Special tip with embossed slit elements. ETA-11/0030 certification allows for use with high density timber without any pre-drill. Approved for structural applications subject to stresses in any direction vs the grain.
The inner core diameter of the screw has been enlarged compared to the LBS version to ensure screwing in higher density woods. The cylindrical under head is designed for fastening mechanical elements and producing an interlocking effect with the plate hole that provides excellent static perfornances
Technische Dokumentation
Technisches Datenblatt
|
|
|---|---|
Technisches Datenblatt USA
|
|
ETA-Zertifizierung
|
|
| Leistungserklärung (DOP) | Herunterladen |
CAD File
|
|
BIM.ifc File
|
|
BIM.rfa File
|
LBS HARDWOOD EVO
| ART.-NR. | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | Stk. |
|---|---|---|---|---|---|---|---|---|---|
| LBSHEVO580 | - | 5 | 80 | 76 | 0.2 | 3 1/8'' | 3'' | TX20 | 200 |
| LBSHEVO5100 | - | 5 | 100 | 96 | 0.2 | 4'' | 3 3/4'' | TX20 | 200 |
| LBSHEVO5120 | - | 5 | 120 | 116 | 0.2 | 4 3/4'' | 4 9/16'' | TX20 | 200 |
| LBSHEVO760 | - | 7 | 60 | 55 | 0.28 | 2 3/8'' | 2 3/16'' | TX30 | 100 |
| LBSHEVO780 | - | 7 | 80 | 75 | 0.28 | 3 1/8'' | 2 15/16'' | TX30 | 100 |
| LBSHEVO7100 | - | 7 | 100 | 95 | 0.28 | 4'' | 3 3/4'' | TX30 | 100 |
| LBSHEVO7120 | - | 7 | 120 | 115 | 0.28 | 4 3/4'' | 4 1/2'' | TX30 | 100 |
| LBSHEVO7160 | - | 7 | 160 | 155 | 0.28 | 6 1/4'' | 6 1/8'' | TX30 | 100 |
| LBSHEVO7200 | - | 7 | 200 | 195 | 0.28 | 8'' | 7 11/16'' | TX30 | 100 |
